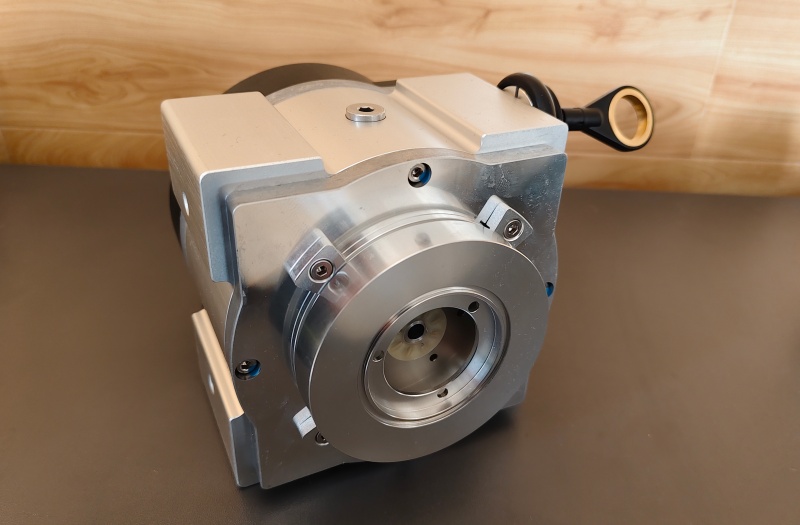

MRA-F130-105D2 is a draw-wire mechanism used for linear displacement measurement and can be combined with a rotary encoder. For this model, we can develop a customized product based on the original mounting conditions and draw-wire parameters for equipment maintenance and replacement.
The measuring range is 0–5 m, with an actual wire length of approximately 5.2 m and about 334.1 mm of travel per revolution. The original configuration is designed for use with a servo-flange encoder with a 6 mm solid shaft.
For the customized version, an additional mechanical option is available. Besides the original 6 mm solid-shaft servo-flange configuration, the product can also be equipped with a 10 mm solid shaft and clamping flange, providing another option for different encoder mounting arrangements.
There is also a clear visual difference between the original and customized products. The original MRA-F130-105D2 uses a blue rear cover, while the customized version uses a black rear cover. This difference mainly helps distinguish the two products visually and does not change the basic measurement or mounting principle.
The brand is also different. The customized product is supplied under a Chinese brand, so it should be regarded as a customized alternative developed around the original measurement range and mounting requirements rather than as the original branded product.
For MRA-F130-105D2, the main customization is to retain the 5 m draw-wire measurement conditions while adding the 10 mm solid shaft with clamping flange as an optional configuration, with clear differences in rear-cover color and brand origin.
