PRF13-C1AM3020 Wire Draw Encoders, HighLine, Incremental encoders, 0m-30m

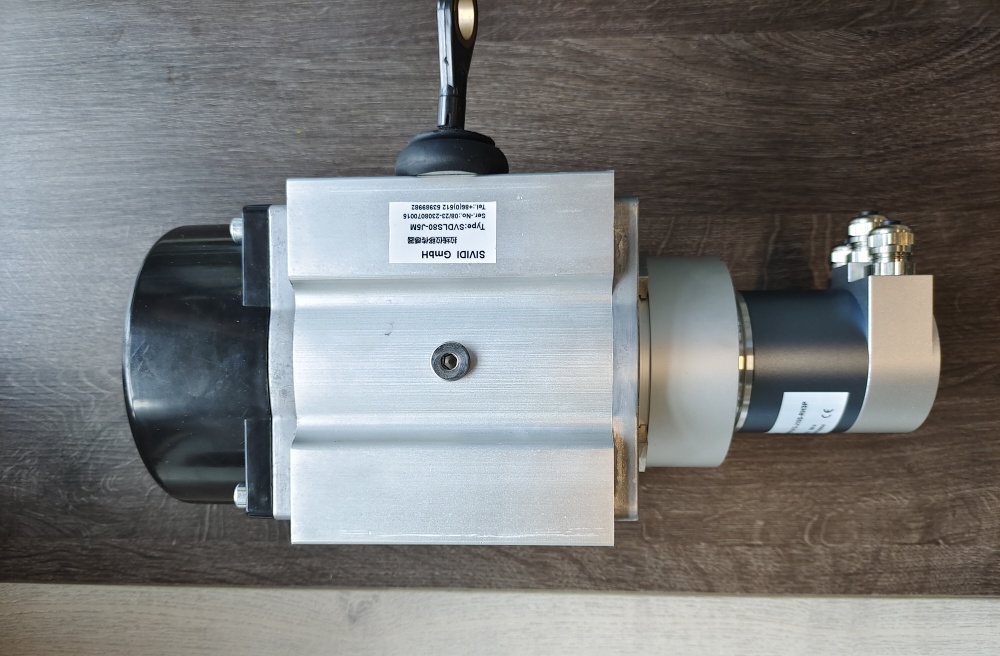

We provide PRF13-C1AM3020 encoder replacement solutions, the use of non-standard form for the production of alternative products, the application parameters of all 1:1. Perfect replacement of the prototype encoder, to solve the procurement and other challenges. The picture is the real photo of the replacement solution.

Ordering information

Type	part no.
PRF13-C1AM3020	1034333

Performance

Measurement range	0m...30m
Encoder	Incremental encoders
Resolution (wire draw + encoder)	0.03 mm
Repeatability	S2 mm
Linearity	S+2 mm

Interfaces

Communication interface	Incremental/TTL/RS-422
Programmable/configurable
Factory setting	The built on DFS60 encoders are programmed to the specified number of lines and interface prior to delivery. The electrical interface (TTL/HTL) and the number of lines (up to max. 10,000 lines) can be set in accordance with customer requirements with our programming devices for DFS60 encoders, which are available separately.

Electronics

Connection type	Male connector, M23,12-pin,radial
Supply voltage	10V...32V
Power consumption	s 0.7 W (without load)

Mechanics

Weight	6.5 kg
Measuring wire material	Highly flexible stranded steel 1,4401 stainless steel V4A
Measuring wire diameter	0.81 mm
Weight (measuring wire)	2.6g/m
Housing material, wire draw mechanism	Aluminum (anodised),plastic
Spring return force	10 N...20 N
Length of wire pulled out per revolution	332.4 mm
Life of wire draw mechanism	Typ.1,000,00ccles
Actual wire draw length	30.2m
Wire acceleration	15m/s2
Operating speed	6m/s
Mounted encoder	DFS60,DFS60B-S1MA10000,1056866
Mounted mechanic	MRA-F130-130D1,6028629
