We configured a custom solution for the M6C-4S1HX51ZTZ00 encoder, intended for hazardous-area industrial environments where 1024 PPR incremental feedback must operate in a flameproof hollow-shaft structure with direct shaft mounting. This configuration belongs to the M6C-4 / M6C-5 Ex de hollow shaft platform, designed for Zone 1 gas atmospheres, with a 1 inch bore, end-of-shaft mounting style, 1024 PPR output, marker pulse, and terminal block conduit-box termination. It is not a general-purpose installation-tolerant encoder. It is a hazardous-location hollow-shaft design where shaft fit, housing stability, bracket geometry, and compliant termination determine whether the signal remains usable. Typical production lead time: 15 working days under confirmed configuration.

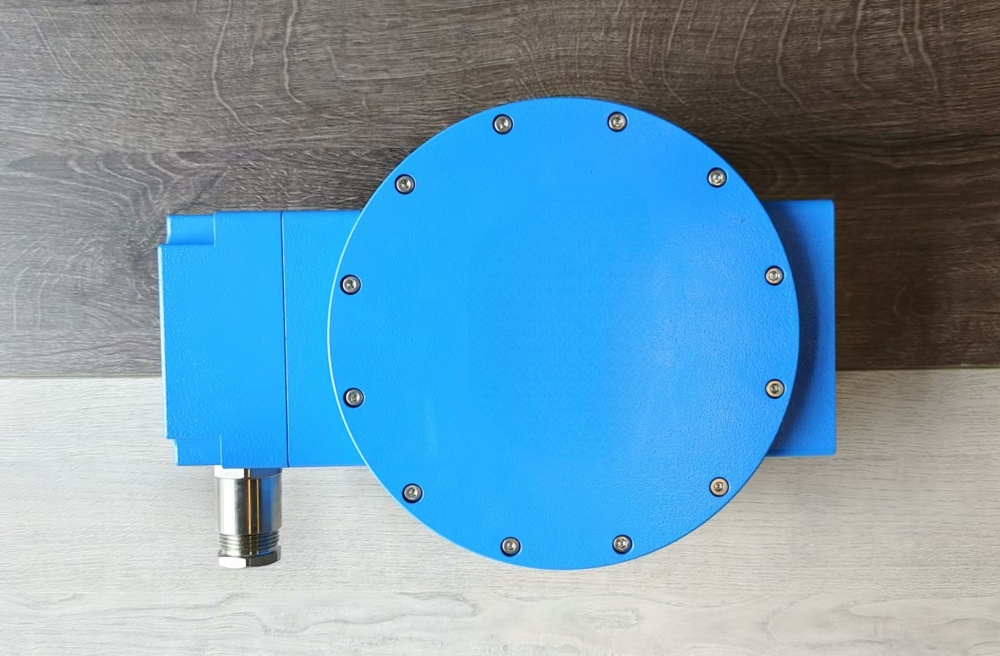

Custom Solution Photos

M6C-4S1HX51ZTZ00 Incremental Encoder 1024 PPR-EncoderWorks
M6C-4S1HX51ZTZ00 Incremental Encoder 1024 PPR-EncoderWorks

Signal usability in this hollow-shaft explosion-protected configuration depends directly on shaft engagement, clamping collar condition, anti-rotation bracket setup, and installation quality shown here.

System Limits

This configuration is limited by housing stability, shaft runout, engagement accuracy, and hazardous-area termination compliance, not by basic enclosure strength.

The M6C platform is rated for 0 to 250 kHz signal frequency and up to 5000 rpm, but in real installations the first failure point is often not the nominal electrical rating. It is housing wobble, shaft fit error, bracket geometry, or incorrect termination practice. The encoder does not usually fail because the enclosure is too weak. It fails when excessive runout, insufficient engagement, or poor clamping quality causes the housing to move and the signal to degrade. The manual is explicit that excessive housing movement becomes more severe as RPM rises, and that mounting shaft runout should typically be held to 0.002" TIR or less.

Priority of limits:

  • Housing wobble becomes a real operating limit before theoretical enclosure strength is relevant
  • Shaft runout and engagement determine whether 1024 PPR remains stable
  • Hazardous-area wiring and termination quality determine whether installation remains compliant and usable

This configuration is constrained entirely by installation conditions, not by encoder capability alone.

Installation and Wiring Constraints

Installation quality is the critical variable for this model.

  • The encoder must not be rigidly mounted; it is intended to use a torsionally rigid flexible anti-rotation arm
  • The standard anti-rotation bracket tolerates ±0.1" shaft end float, but encoder position still needs to be controlled carefully
  • The encoder should slide onto the shaft easily; forcing installation can damage clamping fingers and degrade mounting quality
  • Clamping collar screws must be tightened evenly, and the collar split should sit over a solid portion of the shaft sleeve
  • In hazardous locations, cable entries and blanking elements must be correctly certified for Ex e / IP66 use, and the entry cover must not be opened when energized or in a flammable atmosphere

Field boundary:

  • Excessive shaft runout → housing wobble increases and signal stability drops
  • Insufficient shaft engagement → encoder attitude becomes unstable
  • Damaged clamping fingers or uneven collar tightening → mounting quality degrades
  • Incorrect phase wiring → output direction is reversed
  • Non-compliant cable gland or termination practice → hazardous-area suitability is compromised

Incorrect installation will invalidate both signal usability and explosion-protection compliance before the encoder reaches its nominal operating limit.

Replacement and Interface Mapping

  • Only valid for systems requiring hazardous-area hollow-shaft incremental feedback
  • Suitable for applications needing 1024 PPR, marker pulse output, and direct shaft mounting in Zone 1 environments
  • Not applicable where rigid mounting, uncontrolled shaft runout, or non-certified entry hardware is expected
  • Output format and wiring arrangement can be adapted within the M6C platform’s supported configurations, including single-ended or differential layouts

Key Data

  • Model: M6C-4S1HX51ZTZ00
  • Type: Explosion-protected hollow shaft incremental encoder
  • Bore size: 1 inch
  • Mounting style: End-of-shaft
  • Resolution: 1024 PPR
  • Marker: Yes
  • Output type: Incremental square wave, 50% ±10% duty cycle
  • Frequency range: 0 to 250 kHz
  • Max speed: 5000 rpm
  • Supply range: 5 to 24 VDC
  • Current: 120 mA no load, typical, each output
  • Max additional bearing load: 10 lb axial / 30 lb radial
  • Enclosure rating: IP66
  • Hazardous rating: II 2 G Ex de IIB T4 Gb
  • Ambient range: -20°C to +80°C standard
