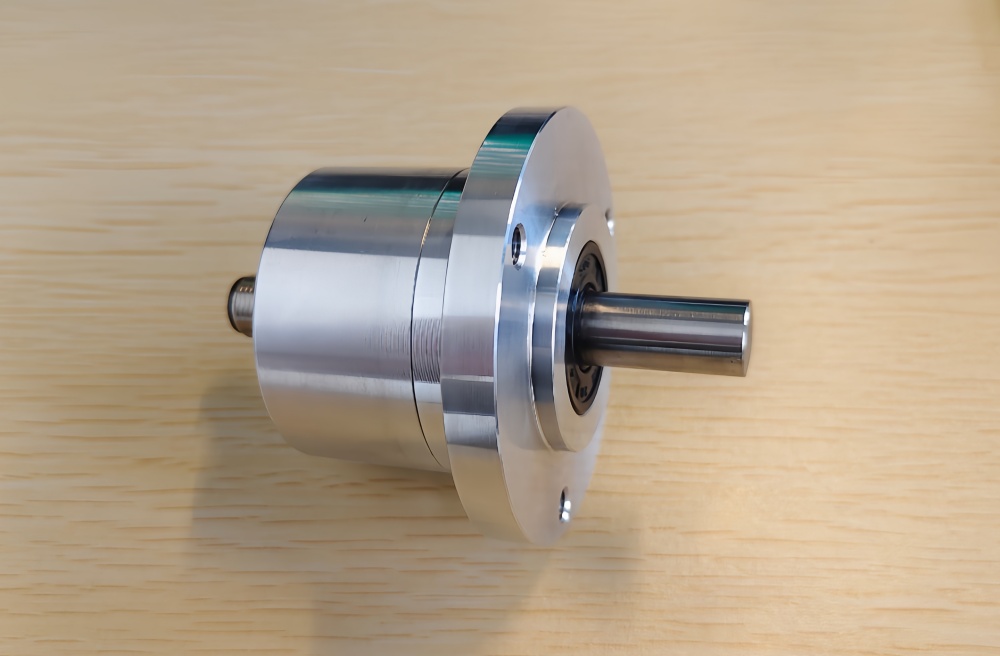

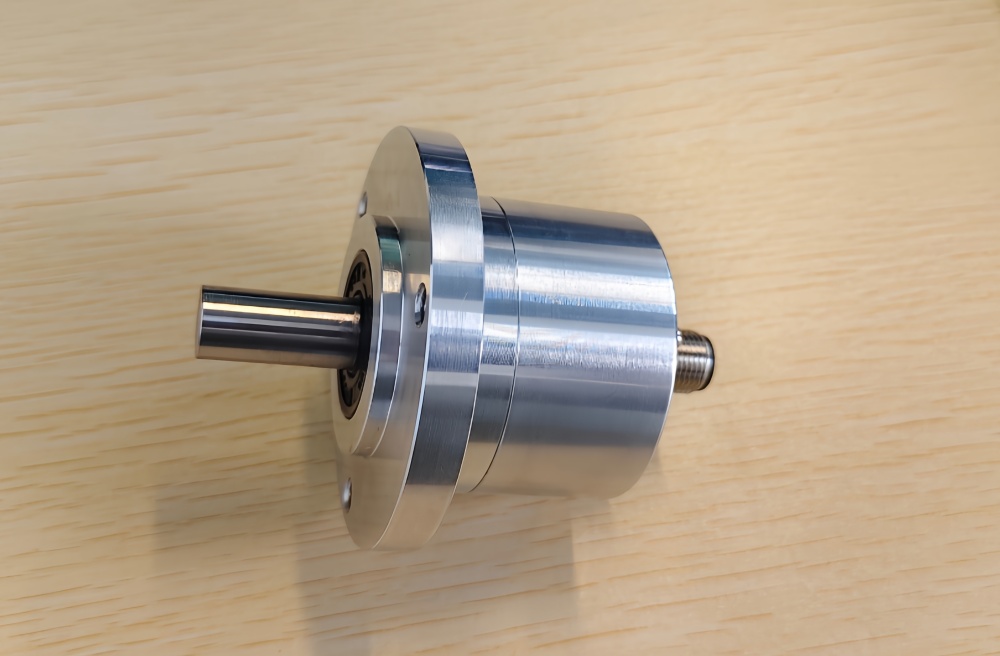

EncoderWorks provides a concise custom compatible solution for HPE700018 M12, built for field replacement where the original incremental encoder behavior must be kept without changing the controller-side wiring logic. Based on the available information, this model should be handled around M12 connection stability, 10–30 VDC supply, 70 mA current level, and correct pulse-count scaling; the pulse value must be confirmed before commissioning because the related HPE700022 M12 reference uses 800 pulses.
Typical production lead time: 15 working days.
Where the System Fails First
The controller reads HPE700018 M12 as an incremental pulse feedback device. In this type of replacement, the main risk is not the encoder label. It is whether the PLC, drive, or counter input receives the same pulse logic, voltage behavior, wiring order, and shield reference after replacement.
The confirmed working boundary should stay conservative:
- M12 wiring mismatch → no signal or unstable feedback
- Wrong pulse-count setting → speed or position scaling error
- Counter input margin too low → missed pulses at higher speed
- Weak shield bonding → noise pulses under inverter load
- Supply instability → intermittent output
- Unconfirmed output channel format → commissioning risk
A stable replacement must first reproduce the original incremental pulse behavior and controller scaling before the mechanical fit is considered successful.
Counter and Wiring Boundary
For HPE700018 M12, the safest engineering approach is to avoid assuming unprovided details. Do not automatically copy the 800-pulse setting from HPE700022 M12 unless the machine label, controller parameter, or original drawing confirms that HPE700018 M12 uses the same pulse count.
This replacement fails when the encoder is mechanically installed but the controller keeps the wrong pulses-per-revolution value. The machine may still run, but speed, distance, or position calculation will be wrong.
The M12 connector is the second checkpoint. Before startup, confirm the actual pin assignment, output channel structure, shield connection, and controller input type. With limited original data, the replacement should be validated at the controller input rather than judged only by the encoder name.
Installation Notes
- Keep the model format as HPE700018 M12
- Confirm the actual pulse count before setting the controller
- Do not assume 800 pulses unless confirmed for this exact model
- Keep supply voltage within 10–30 VDC
- Check current expectation around 70 mA
- Verify M12 pinout before energizing the system
- Keep signal wiring away from inverter and motor power cables
- Confirm shielding and grounding before judging encoder failure
Key Data
- Model: HPE700018 M12
- Type: Incremental encoder
- Supply voltage: 10–30 VDC
- Current: 70 mA
- Connection: M12
- Related reference: HPE700022 M12
- Known difference note: HPE700022 M12 uses 800 pulses
- Main replacement focus: pulse-count scaling, M12 wiring, shielding, supply stability
- Unconfirmed items: HPE700018 exact PPR, shaft size, flange, output channel format, IP rating, cable length, pinout
