CRD65-8192R4096C2Z01 PROFIBUS Encoder Engineering Solution

A custom compatible encoder solution can be provided for CRD65-8192R4096C2Z01 in maintenance, retrofit, replacement, and upgrade projects. This model uses the CRD65 synchro-flange platform together with binary PROFIBUS-DP output, 8192 steps per revolution, 4096-turn multiturn range, and terminal hood version Z. Typical production lead time: 15 working days. The engineering objective is to preserve higher singleturn resolution together with CRD65 flange continuity and integrated bus service logic.

Technical Overview of the CRD65-8192R4096C2Z01 Encoder

The CRD65-8192R4096C2Z01 belongs to the multiturn electro-optical PROFIBUS encoder family and uses a 13-bit singleturn resolution with 8192 positions per 360° together with a 12-bit multiturn range of 4096 revolutions. In the mechanical family, CRD65 is the synchro-flange platform. This makes it suitable for applications where flange-side alignment and higher-resolution singleturn feedback must both remain unchanged.

The platform supports DP-Slave Class 2 behavior according to Encoder Profile No. 3.062 and includes programmable code sequence, class activation, diagnostics routine, scaling function, resolution per revolution, overall resolution, reference value, and station address logic.

Industrial Integration Considerations

For this model, the most important control-side feature is the 8192-step singleturn resolution. In many machines, that higher granularity is already tied to position mapping, scaling, and switching thresholds in the PLC or drive logic. Preserving it avoids unnecessary recommissioning work.

Mechanically, the CRD65 synchro-flange platform should also be matched carefully. Even when several family members share the same communication behavior, flange-side reference geometry often determines whether a replacement remains straightforward in the field.

Field Installation and Wiring Notes

The Z terminal hood should remain consistent with the installed fieldbus layout. Address switches, integrated bus termination, and the separate paths for supply, Bus In, and Bus Out should remain aligned with the original segment role of the encoder.

The DA15/S assignment should be checked against the installed harness, especially where field replacement is intended to preserve bus polarity and terminating-resistor support without redesigning the wiring.

Custom Compatible Encoder Solution

A custom compatible encoder solution for CRD65-8192R4096C2Z01 should preserve five engineering points: CRD65 synchro-flange geometry, binary 8192-step singleturn structure, 4096-turn multiturn range, Z terminal-hood PROFIBUS continuity, and original Class 2 parameter behavior. This helps maintain both higher-resolution control-side continuity and predictable installation compatibility.

Where diagnostics routine, reference value, scaling function, or code-sequence logic are already commissioned, those items should be verified during engineering review before final release.

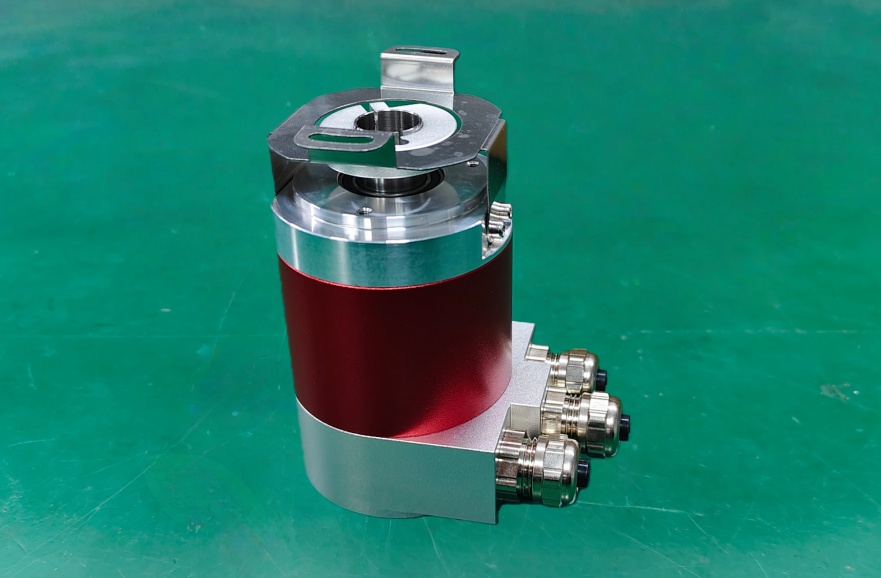

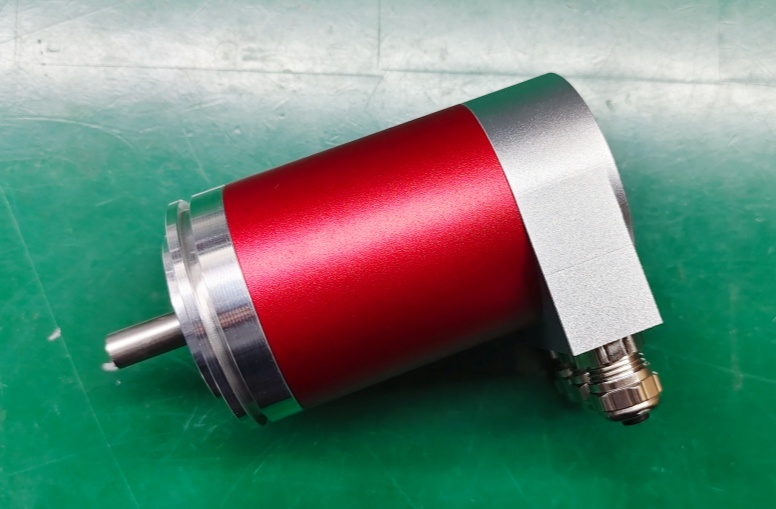

Custom Solution Photos

Lead Time and Custom Development

Typical production lead time: 15 working days.

Main checkpoints include CRD65 flange continuity, station address setting, integrated termination, DA15/S connector assignment, and the original 8192-step singleturn plus 4096-turn multiturn structure used in the control system.
