CEV65M-10736 CEV65M*4096/4096 SSI 80ZB12FL24 Absolute rotary Encoder(Replacement model)

We provide CEV65M-10736 encoder replacement solutions, the use of non-standard form for the production of alternative products, the application parameters of all 1:1. Perfect replacement of the prototype encoder, to solve the procurement and other challenges.

CEV65M-10736 CEV65M*4096/4096 SSI 80ZB12FL24 Absolute rotary Encoder(Replacement model)-EncoderWorks
CEV65M-10736 CEV65M*4096/4096 SSI 80ZB12FL24 Absolute rotary Encoder(Replacement model)-EncoderWorks
ParameterSpecification
No. of Steps/Rev4,096,000
No. of Revolutions4,096,000
Parameterizable Prog.Yes
InterfaceSSI
CodeProgrammable
Supply Voltage11–27V
Output LevelRS422
Protection ClassIP65
Operating Temperature-40 to +70°C
Flange TypeZB80
Shaft Type12FL/24
Connector TypeContact 12P
Connector PositionConnector radial on housing
PinoutNo. ST974A
Mating PlugYes
Options ENC F/RYes
Options ENC HeaterYes
Options ENC Low TempYes (Low Temperature Bearing Unit)
Options ENC Preset 1Yes

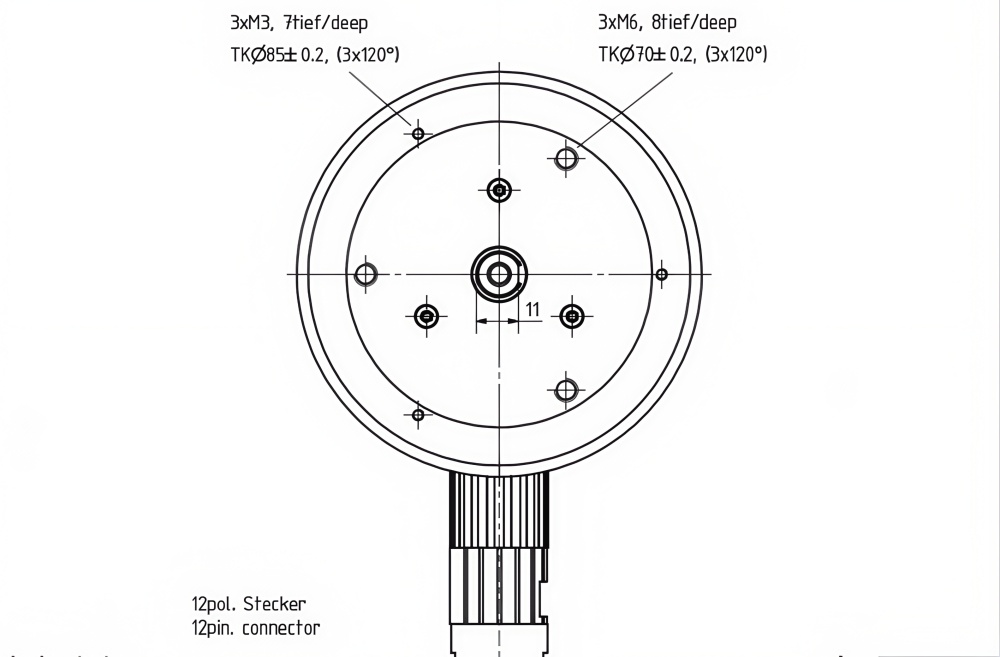

Drawing No.04-CEV65M-M0457
Version No.158
Parameter FileCE831-095
Firmware No.437860
Documentation No.DOKUMENTE
ALN
ECCNN
