We developed a custom solution for the FG4K-1000G-90G-NG encoder, intended for heavy-duty industrial environments where stable incremental feedback must be maintained under vibration, shock, and long cable conditions. This configuration uses a 1000 pulse output, positioned as a balanced solution between signal stability and usable resolution. It is not a high-frequency extreme design. It is a controlled pulse configuration where electrical margin and installation quality define system reliability. Typical production lead time: 15 working days under confirmed configuration.

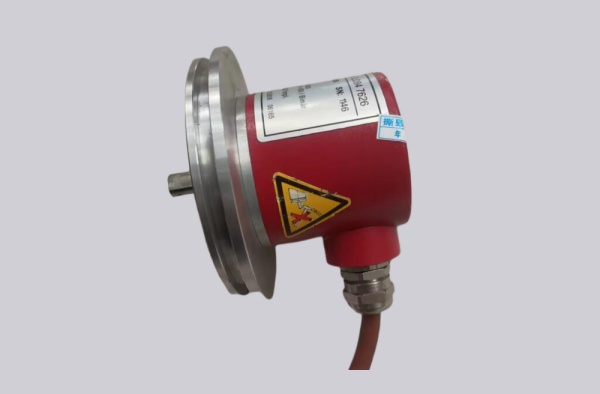

Custom Solution Photos
Signal stability at this pulse level depends directly on the structure, cable routing, and installation quality shown here.
System Limits
This configuration is limited by output frequency and signal transmission quality, not by mechanical capability.
At 1000 pulses, the encoder operates within a moderate frequency range where electrical limits begin to appear but are not yet dominant. The system does not fail because of housing strength or shaft load. It fails when signal quality degrades due to improper wiring, insufficient shielding, or reduced frequency margin under higher rotational speed.
Priority of limits:
- Signal integrity becomes unstable before mechanical limits are reached
- Electrical frequency begins to constrain usable operating range
This configuration is not limited by mechanical structure. It is limited by signal transmission conditions and installation discipline.
Installation and Wiring Constraints
Electrical installation determines whether the encoder can maintain usable output.
- Shielded twisted-pair wiring is required for stable signal transmission
- Inverted and non-inverted channels must be routed as matched pairs
- Poor grounding or shielding will distort signal edges and reduce reliability
Field boundary:
- Long cable without proper shielding → system cannot maintain usable pulses
- Parallel routing with power lines → interference degrades signal quality
- Incorrect signal pairing → pulse output becomes unreliable
The mechanical platform is robust, but installation errors will cause failure before mechanical limits are reached.
Replacement and Interface Mapping
- Only valid for systems supporting incremental pulse input
- Suitable for applications requiring balanced resolution and stable signal output
- Not applicable where high-frequency or high-pulse-density feedback is required
- Output form and connection configuration can be adapted
Key Data
- Model: FG4K-1000G-90G-NG
- Type: Incremental encoder
- Resolution: 1000 pulses
- Output: Incremental A/B/Z
- Signal type: Differential (recommended)
- Frequency range: up to 100 kHz (standard)
- Supply voltage: Industrial standard (configurable)
- Protection: Heavy-duty industrial design
- Structure: Solid shaft, reinforced housing
