We developed a custom solution for the 14-1436X-120 encoder, designed for hazardous-area rotary feedback systems where maximum signal stability, minimal electrical stress, and reliable operation under severe interference are the primary requirements. This configuration represents the lowest pulse-density range in the series, intentionally selected to keep the signal path as robust as possible under long cable routing, inverter noise, and harsh industrial conditions. It is used where stable feedback must be maintained even when installation quality or EMC conditions are not ideal.
Typical production lead time: 15 working days.

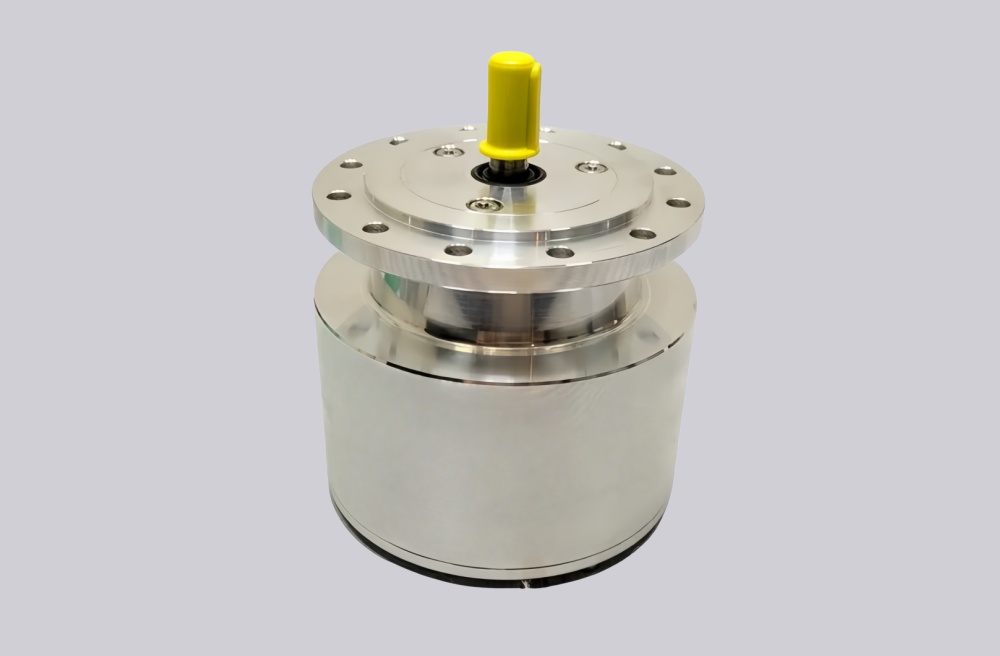

Custom Solution Photos
(Custom solution images can be placed here to show shaft structure, flange type, and cable outlet direction.)
System Limits
This configuration is limited by signal integrity, not by frequency or mechanical capability.
At this pulse level, the encoder operates far below its electrical frequency ceiling across the entire usable speed range. Frequency saturation is not a practical concern in this configuration. The system does not fail because of pulse rate. It fails only when the signal path is degraded by external conditions.
Priority of limits:
- Signal becomes invalid before any electrical or mechanical limit is reached
- External interference defines system reliability, not encoder capacity
This configuration is selected to maximize signal robustness, not to provide detailed feedback resolution. Increasing pulse count from this level immediately reduces tolerance to interference and installation variation.
Differential transmission is mandatory. In any environment involving long cable routing, inverter output noise, or mixed power and control wiring, single-ended signals become unusable before any internal encoder limit is approached.
Installation and Wiring Constraints
Mechanical robustness does not remove the risk of failure from improper installation.
Incorrect mechanical setup leads to rapid degradation:
- Excessive belt tension causes bearing overload
- Shaft misalignment introduces vibration and instability
- Uncontrolled load conditions reduce service life
Wiring discipline is the dominant factor for system success:
- Differential pairs must use twisted, shielded cable
- Encoder wiring must be separated from power and inverter lines
- Incorrect grounding directly invalidates the signal
Field boundary:
- Long cable without proper isolation → signal becomes invalid
- Parallel routing with power cables → pulses cannot be correctly detected
Explosion-proof structure ensures safety compliance only. It does not improve signal performance.
Replacement and Interface Mapping
- Only valid when the control system supports differential incremental input
- Suitable for maximum stability and wide operating margin
- Not usable for systems requiring fine positioning accuracy
- Interface type, cable routing, and connection form can be adapted
Delivery and Customization Scope
Customization is available for mechanical mounting, electrical interface, and cable configuration.
Typical production lead time: 15 working days.
Key Data
- Model: 14-1436X-120
- Type: Incremental encoder
- Resolution: 120 ppr
- Output: RS422 differential
- Supply voltage: 10–30 VDC
- Maximum output frequency: 100 kHz
- Maximum speed: 6000 rpm
- Shaft load: 80 N radial / 60 N axial
- Protection rating: IP66
