We developed a custom solution for the 14-1436X-720 encoder, intended for hazardous-area rotary feedback systems where higher feedback detail is required, but the system still needs a controlled operating margin. This configuration sits between the mid-pulse stable range and the high-pulse sensitive range. It is used when the application needs more feedback density than low and mid pulse versions can provide, but cannot accept the tighter boundary of higher pulse-count models. Typical production lead time: 15 working days.
Custom Solution Photos

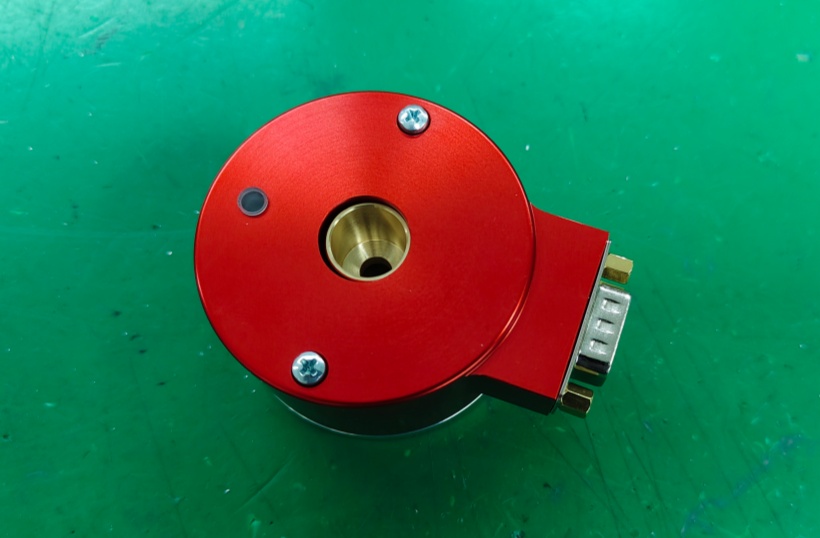

The images show the shaft structure, mounting interface, and cable outlet configuration of the 14-1436X-720 solution.
Focus on:
- The mechanical structure, which must remain stable under shaft load
- The cable outlet direction, which affects shielding and routing quality
- The installation form, which influences alignment and long-term signal stability
These details are not cosmetic. They determine whether the system can keep usable feedback under this pulse level.
System Limits
This configuration is limited by signal integrity first, then frequency margin.
At this pulse level, the encoder still remains inside the family’s 100 kHz frequency ceiling in normal operating conditions, but the electrical margin is no longer wide. The system does not fail because the structure reaches its limit first. It fails when the signal path becomes unstable under interference, poor routing, or weak controller input tolerance. Compared with 360 ppr or 500 ppr versions, this model has less tolerance to installation variation. Compared with 900 ppr or 1000 ppr versions, it still keeps more usable operating space.
Priority of limits:
- Signal quality becomes unstable before mechanical limits are reached
- Frequency margin remains available, but it is no longer generous
This configuration is a balance point. It is only valid when the system truly needs this feedback level and the installation can keep signal quality under control.
Installation and Wiring Constraints
Mechanical capacity is not the first weakness here. Electrical installation quality is.
- Poor cable routing causes unstable pulse edges
- Grounding mistakes reduce counting reliability
- Parallel routing with power cables injects interference into the signal path
Field boundary:
- Long cable without proper shielding control → the system cannot rely on the feedback signal
- Noisy cabinet environment with weak EMC control → pulse output becomes unstable before speed limit is reached
Differential wiring is required. Flameproof construction protects hazardous-area compliance, but it does not improve signal integrity.
Replacement and Interface Mapping
- Only valid when the control system supports RS422 incremental A/B/Z input
- Suitable for applications needing more feedback detail with controlled signal margin
- Not applicable when installation quality or EMC control cannot be maintained
- Interface form, cable outlet, and connection details can be adjusted within the custom solution scope
Delivery and Customization Scope
This solution can be customized in cable configuration, output form, connection method, and mechanical interface details according to the target control system. Typical production lead time: 15 working days.
Key Data
- Model: 14-1436X-720
- Type: Incremental encoder
- Resolution: 720 ppr
- Output: RS422 differential
- Supply voltage: 10 ... 30 VDC
- Maximum output frequency: 100 kHz
- Maximum speed: 6000 rpm
- Shaft load: 80 N radial / 60 N axial
- Protection rating: IP66
