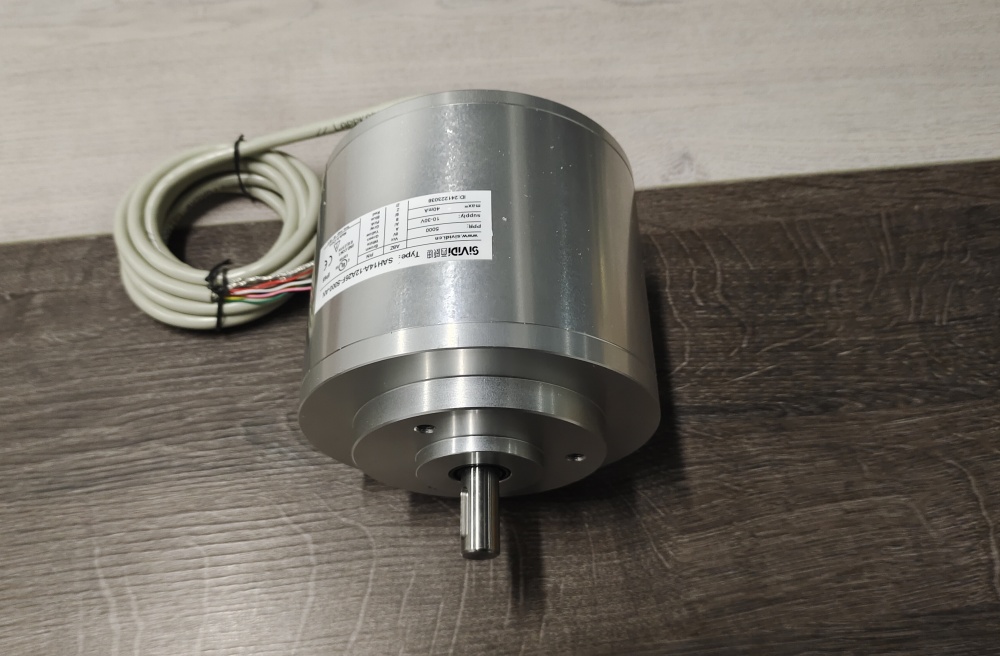

We provide a 1:1 replacement solution for CAMX_12//5C5G//12//T3A030 (CAMX12-12BT-001), engineered to match the original encoder’s electrical characteristics, mechanical interface, and functional performance. This replacement is intended for singleturn absolute positioning applications where direct interchangeability and stable operation are essential.
Built on a proven optical absolute sensing technology, the encoder delivers precise and repeatable position feedback across its operating range. Output behavior, signal format, and timing are aligned with the original specification, allowing seamless integration into existing control systems without changes to PLC programs, wiring, or parameter settings. The mechanical construction supports reliable mounting and continuous operation in typical industrial environments.
As a true 1:1 replacement, this solution is well suited for maintenance and retrofit projects where minimizing downtime is critical. Each unit is reviewed and verified prior to delivery to ensure compatibility with the original installation. By choosing this replacement, users secure long-term availability, controlled lead times, and professional engineering support while maintaining the same system performance and reliability as the original encoder.
Technical data
| Characteristic | Specification |
| Material | Cover: aluminium / Body: aluminium |
| Stainless steel option | Available |
| Shaft | Stainless steel |
| Bearings | 6001 serie |
| Maximal load | Axial: 50 N / Radial: 100 N |
| Shaft inertia | ≤ 16 \cdot 10^{-6} kg.m^2 |
| Torque | ≤ 15 \cdot 10^{-3} N.m |
| Permissible max. speed | 9 000 min⁻¹ |
| Continuous max. speed | 6 000 min⁻¹ |
| Shock (EN60068-2-27) | ≤ 500 text (during 6ms) |
| Vibration (EN60068-2-6) | ≤ 200 text (10 ... 1 000 Hz) |
| CEM | EN 50081-1, EN 61000-6-2 |
| Isolation | 1 000 V eff |
| Weight | 3.5kg aluminium body and cover / 7.2kg stainless steel body and cover |
| Operating temperature | Cf here-under table (encoder T°) |
| Storage temperature | -30... + 85 °C |
| Protection (EN 60529) | IP 65 |
| Theoretical mechanical lifetime | 10^9 turns |
