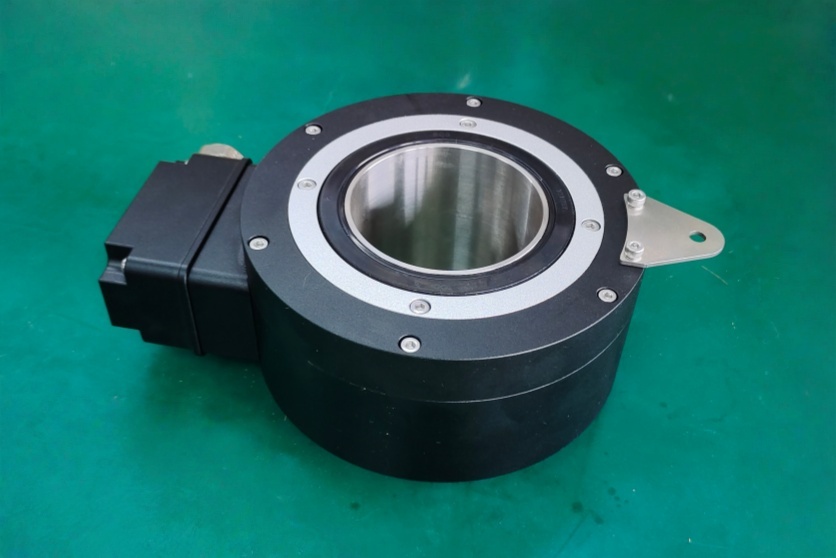

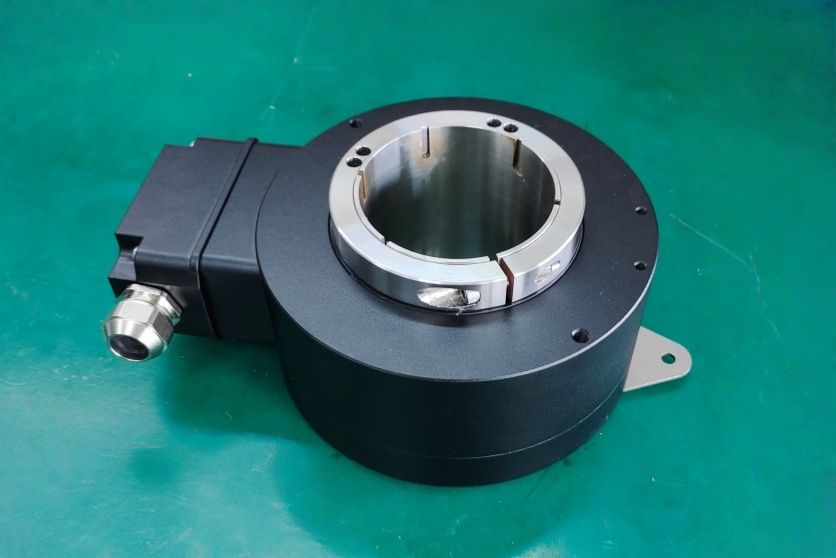

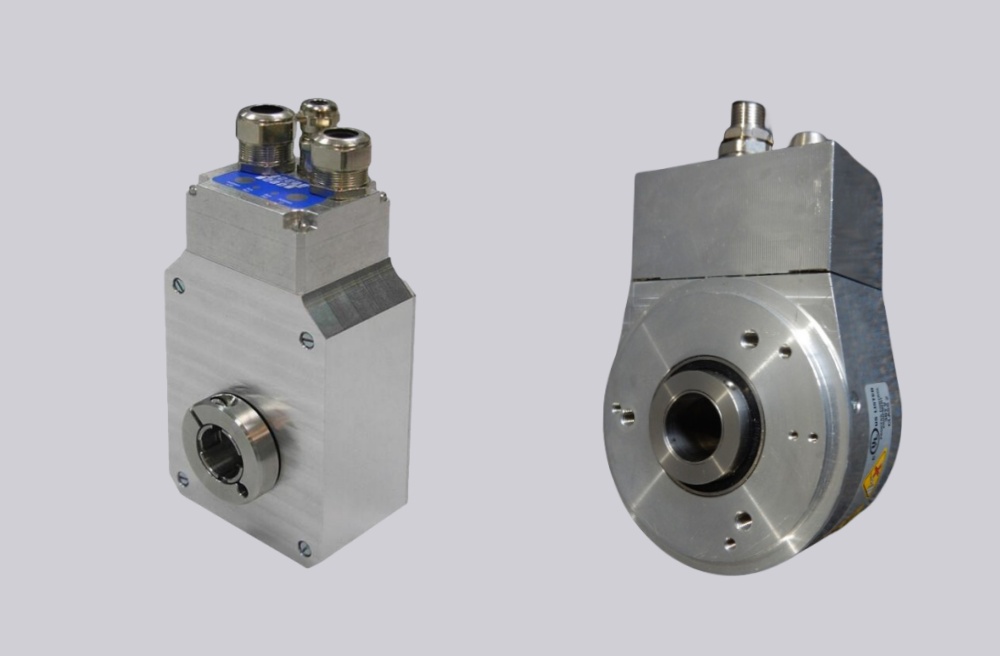

EncoderWorks builds the HOG 163 DN 1024 I custom compatible replacement solution around heavy-duty incremental feedback where 1024 PPR scaling, K1/K2/K0 channel logic, 9–30 VDC HTL output behavior, complementary inverted signals, terminal-box wiring, torque-arm restraint, and the missing shaft-code boundary must be confirmed against the installed encoder. The failure boundary is not a fieldbus telegram or an absolute position word, but wrong HTL level, missed high-speed edges, shifted zero-pulse timing, inverted-channel mismatch, shield noise, torque-arm movement, and selecting the wrong hollow-shaft bore. Typical production lead time: 15 working days.
This model is used where the controller reads speed, direction, and reference position from K1 and K2 quadrature channels with K0 zero pulse. A compatible replacement must preserve the 1024 pulses per revolution, 90° phase relationship, 40–60% duty-cycle boundary, K0 reference-pulse behavior, HTL signal level, inverted K1/K2/K0 channels, terminal-box assignment, housing ground path, and the actual installed shaft interface.
System Limits
The first system boundary is the HTL counter interface. HOG 163 DN 1024 I must be checked against the controller’s HTL input requirement, 9–30 VDC supply range, maximum input frequency, edge evaluation mode, expected K1/K2 direction logic, K0 zero-pulse width, inverted-channel use, cable length, and noise margin. If the replacement is supplied as TTL, another PPR, or without the required complementary signals, the counter may still detect motion while speed scaling, direction recognition, reference repeatability, or index capture becomes unreliable.
The second boundary is the terminal box, torque arm, and shaft-code confirmation. The +UB, 0V, K1, inverted K1, K2, inverted K2, K0, inverted K0, housing earth, shield path, cable gland, and terminal-box orientation must match the installed harness. A correct 1024 PPR HTL encoder can still fail if the selected bore is wrong, the shield is terminated through high impedance, the feedback cable runs beside brake or drive wiring, or the torque arm allows encoder-body movement. Before production, the installed shaft code must be confirmed as 38H7, 50H7, 55H7, 56H7, 60H7, 65H7, 70H7, 75H7, or another site-specific version.
Wiring & Installation
Before replacement, confirm the complete installed model code, 1024 PPR requirement, HTL supply and output level, K1/K2 phase relationship, K0 zero-pulse use, inverted-channel wiring, terminal-box layout, cable-entry direction, shield termination method, torque-arm length, shaft diameter, bore type, insertion depth, and machine-side tolerance. This shortened model code should not be treated as production-ready because the shaft code defines the mechanical interface and may determine whether the encoder is a blind hollow-shaft or through-hollow-shaft version.
During installation, verify supply, 0V, K1, K2, K0, all inverted signals, housing earth, and shield continuity before powering the system. Keep the feedback cable away from motor, brake, SCR, and VFD wiring, and avoid using the shield as a load-carrying ground conductor. The hollow shaft must seat concentrically, and the torque arm must restrain encoder-body rotation without creating radial side load. Bore mismatch, eccentric seating, or axial preload can appear as phase jitter, bearing stress, intermittent zero-pulse repeatability, or high-speed count loss.
Custom Compatible Solution
- Match 1024 PPR incremental feedback, K1/K2 quadrature, K0 zero pulse, HTL output level, 9–30 VDC supply range, and inverted signal requirements
- Preserve terminal-box wiring, +UB / 0V reference, shield continuity, housing earth, cable-entry direction, and counter input compatibility
- Confirm the missing shaft code before production, including bore diameter, blind or through-hollow structure, torque-arm geometry, and mounting tolerance
- Review 120 kHz frequency margin, 90° phase tolerance, 40–60% duty cycle, zero-pulse timing, shaft load, vibration, grounding, and commissioning checks before shipment
Key Data
| Item | Data |
|---|---|
| Model | HOG 163 DN 1024 I |
| Encoder type | Heavy-duty hollow-shaft incremental encoder |
| Feedback type | K1 / K2 quadrature with K0 zero pulse |
| Pulse count | 1024 PPR |
| Output signals | K1, K2, K0 with inverted signals |
| Output stage | I, HTL with inverted signals |
| Supply voltage | 9–30 VDC |
| Phase shift | 90° ±20° boundary |
| Duty cycle | 40–60% |
| Reference signal | K0 zero pulse, 90° width |
| Output frequency | ≤120 kHz, counter margin must be checked |
| Connection | Terminal box |
| Shaft interface | Shaft code missing, requires confirmation |
| Protection rating | IP56 sealing boundary |
| Mechanical speed | ≤6000 rpm, application check required |
| Shaft load | ≤350 N axial / ≤500 N radial |
| Key replacement checks | HTL level, 1024 PPR scaling, K1/K2 direction, K0 zero pulse, inverted channels, terminal mapping, shield grounding, torque arm, shaft-code confirmation |
