We developed a custom solution for the FG4KK-1024G-90G-NG encoder, intended for heavy-duty industrial environments where redundant incremental feedback must remain stable under vibration, shock, and industrial interference while maintaining practical pulse resolution. This configuration uses a 1024 pulse output with dual redundant signal systems, making it suitable for applications that require both signal availability and controlled feedback density. It is not a high-frequency extreme design. It is a redundancy-based industrial configuration where transmission quality and channel consistency determine whether the system remains usable. Typical production lead time: 15 working days under confirmed configuration.

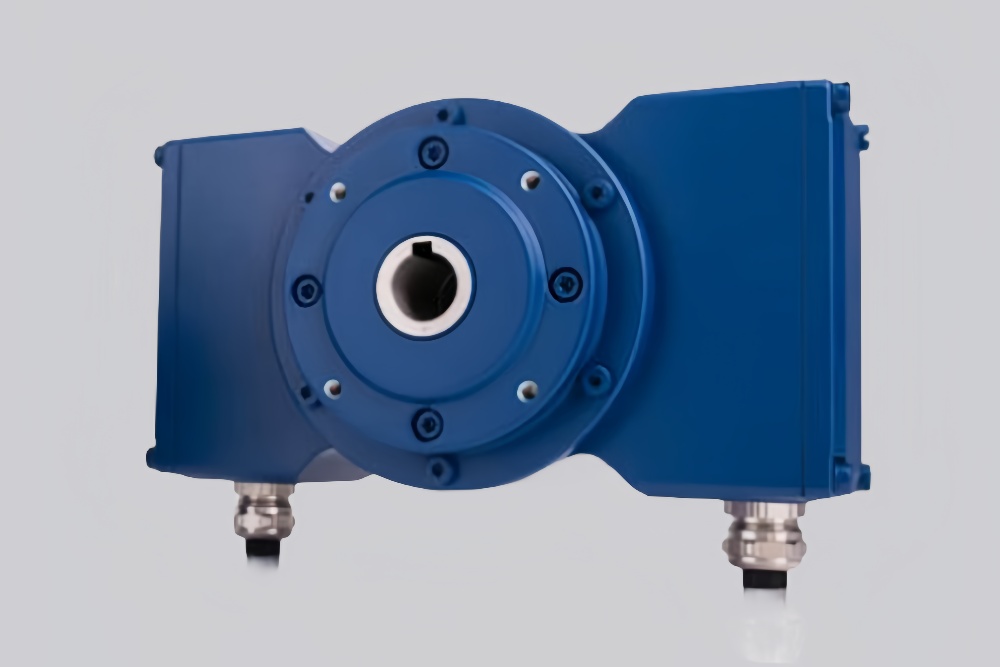

Custom Solution Photos


Signal stability in this redundant configuration depends directly on the structure, cable routing, and installation quality shown here.
System Limits
This configuration is limited by signal transmission quality and redundant channel consistency, not by mechanical capability.
At 1024 pulses, the encoder still retains usable electrical margin, but it no longer behaves like a wide-tolerance low-pulse design. The system does not fail because of shaft strength or housing design. It fails when shielding, grounding, or cable routing reduce signal integrity, or when the two redundant channels can no longer remain electrically consistent under real industrial conditions.
Priority of limits:
- Signal transmission becomes unstable before mechanical limits are reached
- Channel consistency determines whether redundancy remains valid under operating load
The first failure point is signal transmission and channel consistency, not mechanical strength.
Installation and Wiring Constraints
Electrical installation determines whether redundancy provides real protection.
- Each signal path must be routed with proper shielding and matched pair integrity
- Inverted and non-inverted channels must remain correctly paired on both systems
- Poor grounding or cable routing will degrade both channels and remove the value of redundancy
Field boundary:
- Long cable without proper shielding → pulses become unusable on both channels
- Parallel routing with power lines → interference degrades signal quality and comparison accuracy
- Weak channel separation or inconsistent edge quality → redundant monitoring becomes unreliable
Incorrect wiring will invalidate both redundancy and signal usability before any mechanical limit is reached.
Replacement and Interface Mapping
- Only valid for systems requiring redundant incremental pulse feedback
- Suitable for applications needing practical resolution with dual-channel monitoring
- Not applicable where redundancy cannot be correctly integrated or maintained
- Output configuration and connection structure can be adapted
Key Data
- Model: FG4KK-1024G-90G-NG
- Type: Incremental encoder (redundant dual-system)
- Resolution: 1024 pulses
- Output: Dual A/B/Z incremental channels
- Signal type: Differential (recommended)
- Frequency range: up to 100 kHz standard, up to 150 kHz on request
- Supply voltage: 12–30 VDC
- Protection: Heavy-duty industrial design
- Structure: Solid shaft, reinforced housing
