We have developed a custom solution for model HPE700022 M12, based on a compact industrial incremental encoder platform with M12 connector output, designed for applications requiring stable pulse feedback under standard industrial power conditions. This configuration is built around a 10–30 VDC supply range, 5000 PPR resolution, and controlled current consumption around 70 mA, making it suitable for systems where medium-to-high resolution incremental feedback is required without moving to absolute or fieldbus architectures. Typical production lead time: 15 working days.
Technical Key Parameters
- Output type: Incremental (A/B/Z)
- Resolution: 5000 PPR
- Supply voltage: 10–30 VDC
- Connection: M12 connector
- Current consumption: ≈70 mA

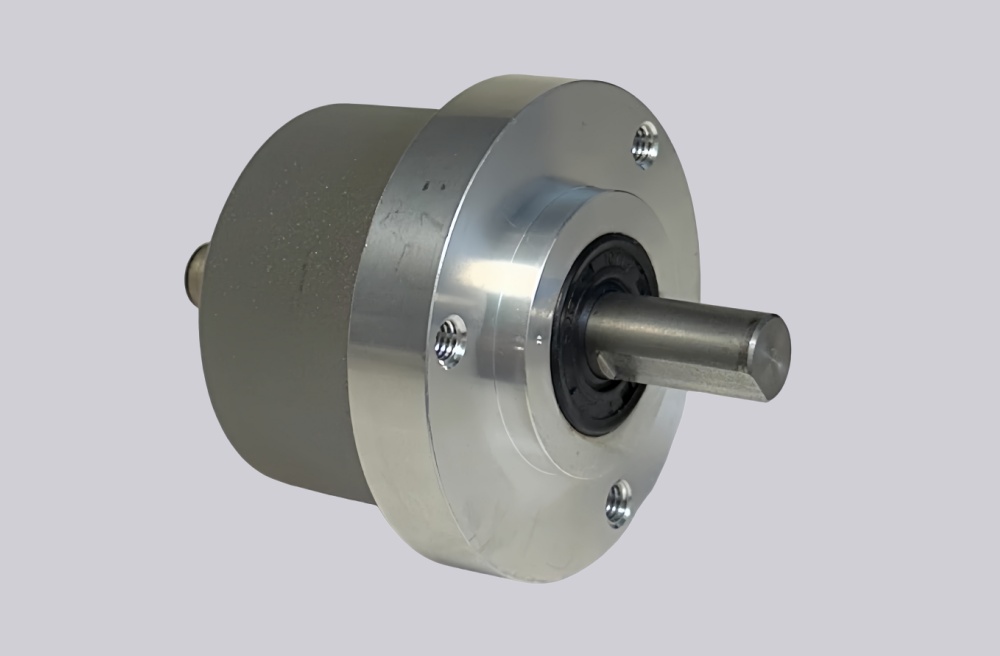

Custom Solution Photos
The configuration reflects a compact incremental encoder structure with M12 connector output for standardized industrial wiring integration.
Wiring and Installation Notes
This model uses a standard incremental A/B/Z output, so signal stability depends primarily on wiring quality, shielding continuity, and proper grounding rather than protocol configuration. In practice, pulse loss or unstable counting is more often caused by cable routing alongside inverter lines, poor shielding, or incorrect signal reference than by encoder failure. The A, B, and Z channels should be routed with consistent impedance and kept away from high-frequency noise sources.
The M12 connector interface simplifies installation but requires correct pin assignment verification during commissioning. In field conditions, incorrect pin mapping is a more common startup issue than hardware mismatch. Mechanically, installation quality depends on proper shaft alignment and coupling selection. Incremental encoders are generally more tolerant than hollow-shaft absolute types, but excessive radial load or misalignment can still affect long-term stability and bearing life.
Application and Integration Notes
This configuration is typically used in motion control systems, motor feedback loops, conveyor systems, and general automation equipment where high-resolution incremental feedback is required. Its practical value lies in combining 5000 PPR output with a wide 10–30 VDC supply range, allowing flexible integration into different control platforms without requiring interface conversion.
Compared with absolute encoders, this model simplifies integration and reduces system cost, but requires a reference or homing process after power-up. In practice, it is selected when the system already includes homing logic and where deterministic pulse feedback is sufficient without requiring position retention across power cycles.
Custom Encoder Solution
- 5000 PPR incremental output for high-resolution motion feedback
- 10–30 VDC wide supply range for flexible system integration
- M12 connector interface for standardized industrial wiring
- Suitable for systems requiring stable A/B/Z pulse signals without absolute positioning
Lead Time and Custom Development
This model is configured based on confirmed resolution, electrical interface, and connection requirements. Typical production lead time: 15 working days.
Key Technical Data
| Item | Specification |
|---|---|
| Output type | Incremental A/B/Z |
| Resolution | 5000 PPR |
| Supply voltage | 10–30 VDC |
| Current consumption | ≈70 mA |
| Connection | M12 connector |
| Signal type | Push-pull / HTL (typical configuration) |
| Max speed | Application-dependent |
| Protection | Industrial standard (configurable) |
Technical Summary
The engineering value of HPE700022 M12 lies in its combination of 5000 PPR incremental feedback, wide-voltage operation, and a standardized M12 connector interface. It is best suited for applications where stable pulse-based position or speed feedback is required and where system architecture already includes homing or reference positioning. In practical use, the key factors for reliable performance are proper signal routing, correct connector pin assignment, and controlled mechanical alignment.
