BMA 3G.24C8192-C6-5 SSI Encoder Custom Solution

A custom compatible encoder solution can be provided for BMA 3G.24C8192-C6-5 in maintenance, retrofit, replacement, and upgrade projects. Typical production lead time: 15 working days. This version is especially relevant where the original installation uses a 6 mm shaft encoder with radial cable exit, and the replacement should preserve SSI signal continuity as well as the existing mounting arrangement.

Technical Overview of the BMA 3G.24C8192-C6-5 Encoder

This model belongs to a 58 mm SSI multiturn absolute encoder platform with 13 bit single-turn resolution and 12 bit multi-turn resolution. The coded version 24C8192 indicates Gray code, RS485 complementary SSI output, and a 25-bit data structure without parity. As a BMA version, it uses a servo flange and a 6 mm shaft, while the “5” connection code identifies a 1 m radial cable outlet. These combined features make the model mechanically compact but electrically sensitive to cable routing practice in the field.

Industrial Integration Considerations

For retrofit work, the key issue on this version is usually connector-free cable continuity rather than plug matching. Since the output is complementary SSI, the controller side should be checked for clock current-loop compatibility, Gray-code decoding, and 25-bit word handling. Zero-setting sequence and F/R direction input logic should also be reviewed during engineering assessment, especially where the original machine uses a defined homing or commissioning procedure.

Field Installation and Wiring Notes

Because this version uses a radial cable outlet, field wiring should focus on cable exit direction, bend radius, and shielding continuity. The data pair and clock pair should be kept away from motor power lines, and the cable screen should remain properly bonded to the housing according to the original installation method. The ZERO input is triggered by a HIGH pulse and should be applied after F/R direction selection, with a minimum signal duration above 100 ms. During shaft installation, the 6 mm shaft fit and servo flange alignment should be checked carefully to reduce coupling stress and preserve long-term stability.

Custom Compatible Encoder Solution

A compatible solution for this model is typically developed around five technical points: 25-bit SSI signal structure, Gray-code data continuity, 6 mm shaft and servo flange fit, radial cable exit direction, and preserved ZERO/F/R control logic. Where required, the coded configuration can be matched to the original field setup so that retrofit work remains limited and original application continuity is maintained.

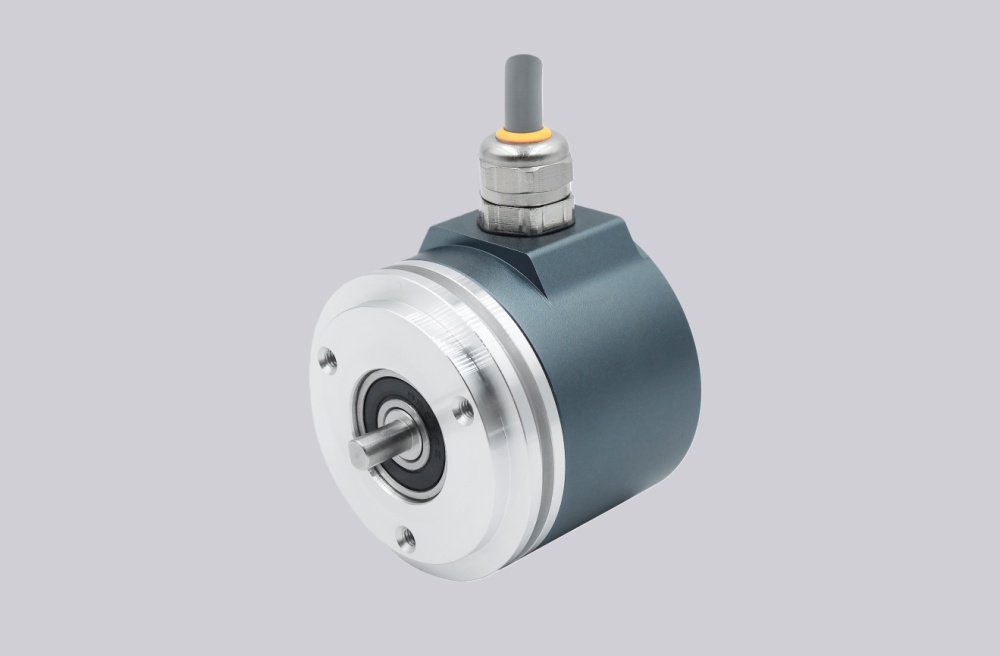

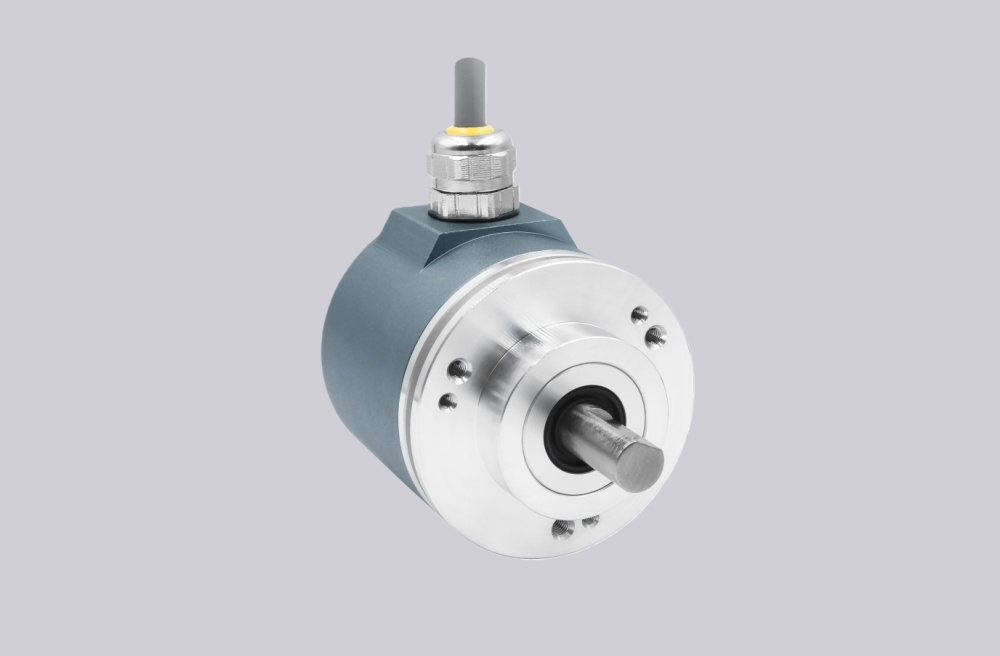

Custom Solution Photos

Lead Time and Custom Development

Typical production lead time: 15 working days. Custom development can be arranged for projects requiring preservation of cable outlet direction, shaft fit, SSI timing behavior, and field wiring continuity. If the original machine uses project-specific logic for zero setting or counting direction, that should be confirmed during engineering review before final configuration.

Typical Technical Parameters
