8.9080.2132.3001 PROFIBUS Absolute Encoder Engineering Solution

For systems using 8.9080.2132.3001, a custom compatible solution can be engineered for maintenance, retrofit, replacement, and upgrade applications. This model is based on the same multiturn PROFIBUS DP platform but uses a short spring element fixing concept together with a 12 mm through hollow shaft and M12 connector arrangement. Typical production lead time: 15 working days. The key value of the compatible solution is to preserve both the encoder communication profile and the original installation freedom built into the spring-mounted mechanical concept.

Technical Overview of the 8.9080.2132.3001 Encoder

The platform behind 8.9080.2132.3001 is a multiturn absolute encoder with PROFIBUS DP communication, binary code output structure, and scalable singleturn and multiturn resolution. It uses RS485 at the physical layer and supports baud rates up to 12 Mbit/s. The encoder profile class is 2, which is relevant for applications where the controller side is already built around profile-based parameter interpretation.

Its ordering code identifies flange type 2, 12 mm H7 bore, and connection type 2. That means this version uses a short spring element, a 12 mm through hollow shaft, and a 3 x M12 connector layout instead of a cable gland terminal box. This layout is often selected where machine-side wiring favors structured connector-based bus in, bus out, and power connection practice.

Industrial Integration Considerations

This model is especially relevant where controlled shaft float and installation tolerance compensation are part of the original encoder mounting logic. A short spring element can help maintain anti-rotation behavior without imposing the same mounting constraints as a rigid flange arrangement. For retrofit continuity, that means the spring element type, cylindrical pin use, and clamping practice should be reviewed as part of the mechanical compatibility check.

The three-connector arrangement also changes integration behavior compared with a cable gland version. Since the datasheet separates bus in, bus out, and power supply through M12 connections, this version is better suited to installations where fieldbus daisy-chain practice and connectorized service access are part of the existing machine design. That connection logic should be preserved when arranging a compatible replacement solution.

Custom Compatible Encoder Solution

A custom compatible encoder solution for 8.9080.2132.3001 should concentrate on the interaction between connectorized wiring and spring-supported mounting. In many service situations, replacing the encoder with a mechanically similar but differently wired unit creates more field work than expected. For that reason, the practical goal is to match the 12 mm through hollow shaft, short spring element geometry, and 3 x M12 interface style together with the PROFIBUS profile and programmable functions already used in the original installation.

If the existing system uses preset handling, scaling, or direction reversal within the controller configuration, those items should be checked during engineering review so the new solution preserves commissioning behavior as closely as possible.

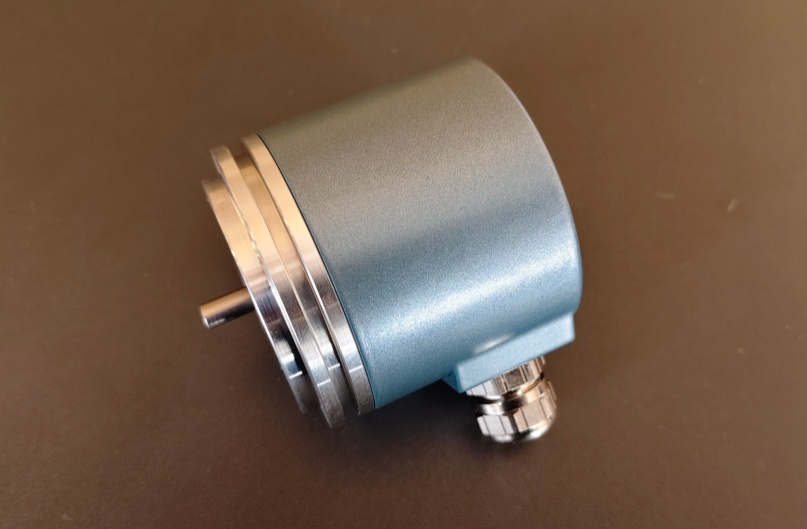

Custom Solution Photos

Lead Time and Custom Development

Typical production lead time: 15 working days.

Custom development should verify spring element version, bore fit, connector orientation, and bus topology requirements. This model is best treated as an integration-sensitive variant because both the mounting method and wiring architecture influence field replacement continuity.
