We developed a custom solution for the MA410-AC-H1024 encoder, intended for applications where heavy-duty incremental feedback must remain stable in corrosive, wet, or vibration-prone industrial environments while using a terminal-box wiring structure. This configuration is built on the MA410 heavy-duty incremental encoder platform, using a Ø115 mm housing, EURO flange B10, Ø11 mm keyed solid shaft, stainless steel AISI 316 body, terminal box connection, HTL electrical option, and 1024 ppr output. It is not a light-duty pulse encoder. It is a sealed heavy-duty feedback solution where environmental resistance, bearing durability, and field wiring integrity determine whether the signal remains usable. Typical production lead time: 15 working days.

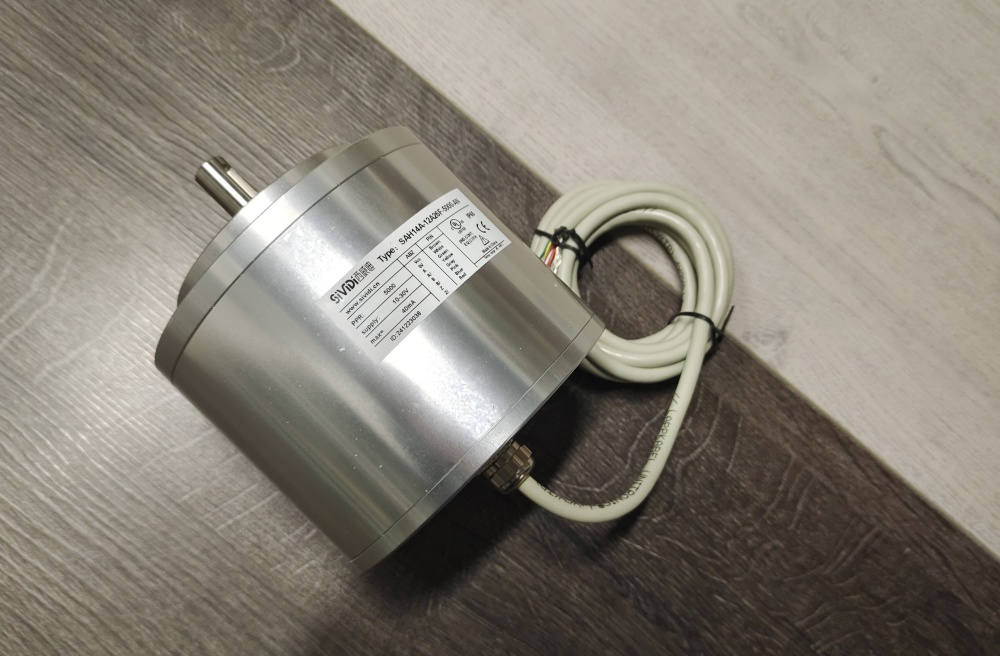

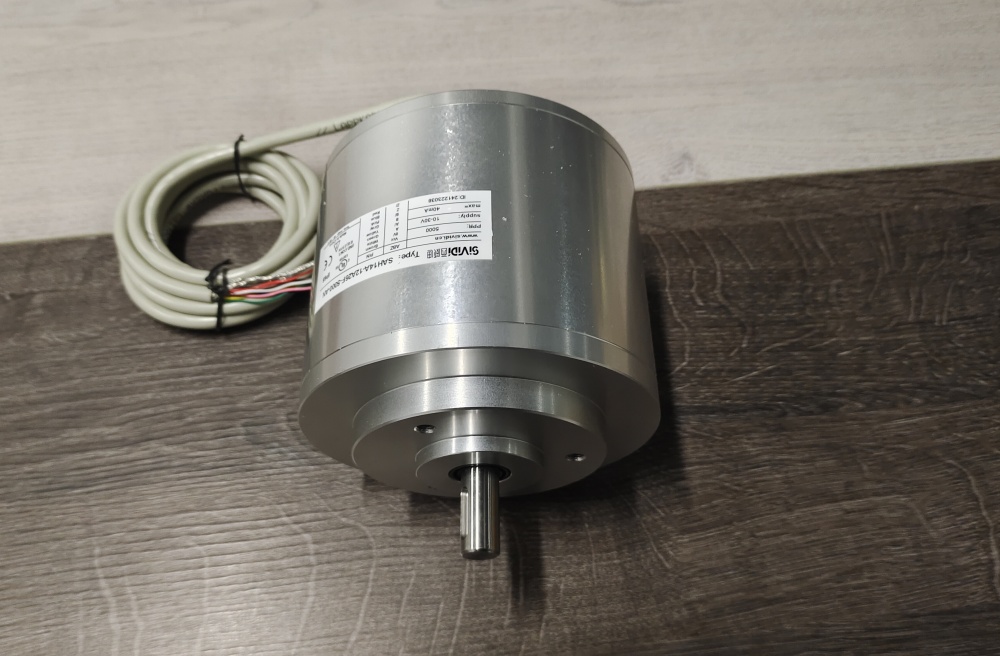

Custom Solution Photos

MA410-AC-H1024 Terminal Box Incremental Encoder-EncoderWorks
MA410-AC-H1024 Terminal Box Incremental Encoder-EncoderWorks

Stable operation depends on flange rigidity, shaft alignment, terminal sealing, and reliable field wiring.

System Limits

  • Poor shaft alignment → bearing stress and pulse instability
  • Weak sealing or poor terminal-box wiring → corrosion or signal failure risk
  • High-frequency output without proper shielding → unstable signal transmission

The MA410 series is designed for offshore and salt-water environments, using AISI 316 stainless steel housing and enlarged sturdy bearings for demanding service. This version uses HTL output with A, B, and marker pulse, plus inverted signals and power SENSE lines, so the system can support robust incremental feedback in industrial installations. The practical limit is not the housing first; it is whether the shaft system, sealing, and wiring remain controlled under load and moisture.

Installation and Wiring Constraints

  • Use rigid EURO flange B10 mounting
  • Maintain proper shaft alignment and avoid excess radial or axial load
  • Use the terminal box with cable gland for Ø6–Ø12 mm cable correctly
  • Keep signal wiring shielded for high-frequency output
  • Verify controller compatibility with HTL / RS422A-compatible line driver output

Failure boundary:

  • Poor alignment → bearing wear and unstable signal
  • Weak sealing → corrosion risk in harsh environments
  • Inadequate shielding → degraded output at high frequency

Replacement and Interface Mapping

  • Suitable for heavy-duty incremental feedback in harsh industrial environments
  • Applicable where terminal-box connection and corrosion-resistant housing are both required
  • Not suitable where installation rigidity, sealing quality, or controller input matching cannot be ensured

Key Data

  • Model: MA410-AC-H1024
  • Type: Heavy-duty incremental encoder
  • Housing: Ø115 mm, stainless steel AISI 316
  • Shaft: Ø11 mm keyed solid shaft, stainless steel 1.4057
  • Mounting: EURO flange B10
  • Connection: Terminal box with cable gland Ø6–Ø12 mm
  • Electrical option: H = HTL
  • Pulse rate: 1024 ppr
  • Output: A, B, 0(marker) + inverted signals
  • Frequency: up to 300 kHz
  • Supply voltage: 5–30 VDC
  • Protection: IP67
  • Max speed: 12000 rpm
  • Bearing load at 1000 rpm: radial <350 N / axial <250 N
  • Operating temperature: -40 to +80 °C
